RoboMQ Creates the First Visual Business Process Designer

visual-flow-designer.
Facebook Twitter Linkedin
RoboMQ is proud to say that we, a little startup based out of Northern Virginia, have created the world’s first visual process builder for microservices. Using RoboMQ Integration Flow Designer you can build complex business processes using a palette of functional nodes, each of which represents a well-defined microservice running on the cloud and using the familiar UI of Node-Red. In layman’s terms, it’s a way of “coding” using drag and drop options.

The idea is very simple. Microservices have evolved from SOA (Service Oriented Architecture), trying to solve the issues around SOA and making the services truly atomic, independent, fine grained and composable. You should and you could build complex event processing (CEP) and businesses processes using a collection of chained Microservices. This is exactly what RoboMQ Microservices platform has been providing. Using RoboMQ Message Oriented Middleware (MOM) for IoT and ThingsConnect multi-protocol API gateway, you could also explore RoboMQ for IoT SaaS integration solutions to build scalable microservices on RoboMQ Microservices Platform. You simply take a set of microservices and chain them over message queues and you have a working business flow. This chaining is done by configuration files that connect the Microservices running on the cloud or on-premise using RoboMQ message oriented middleware.

This is all well and good for programers, but what about everyone else in the building? If you’re a non-techie still following along I commend you. For the average office worker anything involving code requires an immediate call to IT. That’s why we set about building a WYSIWYG (What You See Is What You Get, pronounced “wiz-ee-wig” if you want to have a little fun with it) platform for this purpose.

We are happy and proud to announce that we have launched RoboMQ “Integration Flow Designer” this week after months of development and testing.

RoboMQ Integration Flow

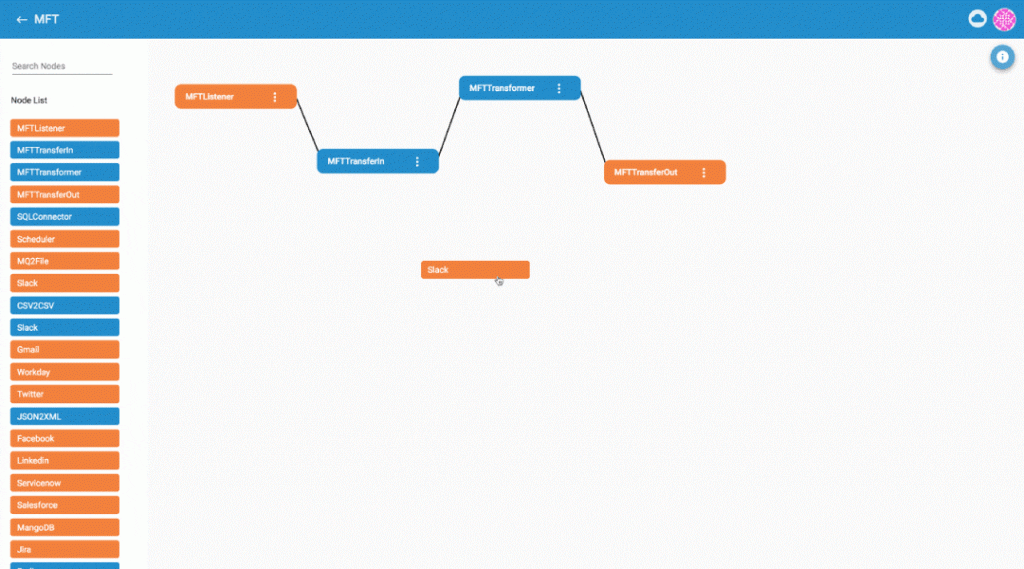

Fig 1: RoboMQ Integration Flow Designer

The Integration Flow Designer presents a palette of nodes available to chain together to create a process flow. These nodes represent Microservices and the basic constructs to build the business processes. Each of these nodes can have an input and an output. Each node gets input and feeds the output to the next node as the input, creating a chain of processing. Architecturally, Integration Flow Designer follows Flow-Based Programming (FBP) principles. The edge nodes can read the data or write the data over any protocol to any end application using the ThingsConnect adapters and connectors themselves available as nodes.

Design integration flow

Fig 2: Integration Flow Designer architecture

Once a flow is visually built, you can click to deploy the flow – as simple as that. The flow runs on the cloud or on your on-premise data center on the app server which itself is dockerized. The flow executes and interacts with Microservices running on the container management platform (representing each node). It directs the Microservices to pick the task or the input from the message queues and process them. The result of each node’s processing is written to the output and is picked up by the next node or the Microservice in the flow sequence. The end result is an orchestrated execution of a chain of Microservices using a simple visual user interface.
Integration Flow Designer packs all the benefits available with Microservices, message queues, and ThingsConnect suite of adapters and connectors into a simple visual package for rapid development of integration flows.

Now you can connect any device, sensor, SaaS application or enterprise system using any protocol by the simple drop-and-drop of nodes from a palette, or leverage the Hire2Retire integration platform for enterprises for end-to-end automation.

If you would like to learn more or see a demo of the product live in action send us a email as sales@robomq.io or contact us from our website.
